Low-E Glass

Professional Low-E Glass Manufacturer and Supplier

Jinan Huanqiu Glass Technology Co., Ltd. was established in December 2020 and is a large-scale glass building materials company specializing in the production and processing of various types of tempered glass, insulating glass, laminated glass, coated glass, architectural engineering glass and high-end system door and window glass.

Hard Coated Low-E Glass

The coating is then applied to a glass ribbon produced on a float glass production line, which

Add to Inquiry
Low-e Glass Panels

LOW-E glass sheet is a coated glass that uses magnetron sputtering to coat one or more layers of

Add to Inquiry

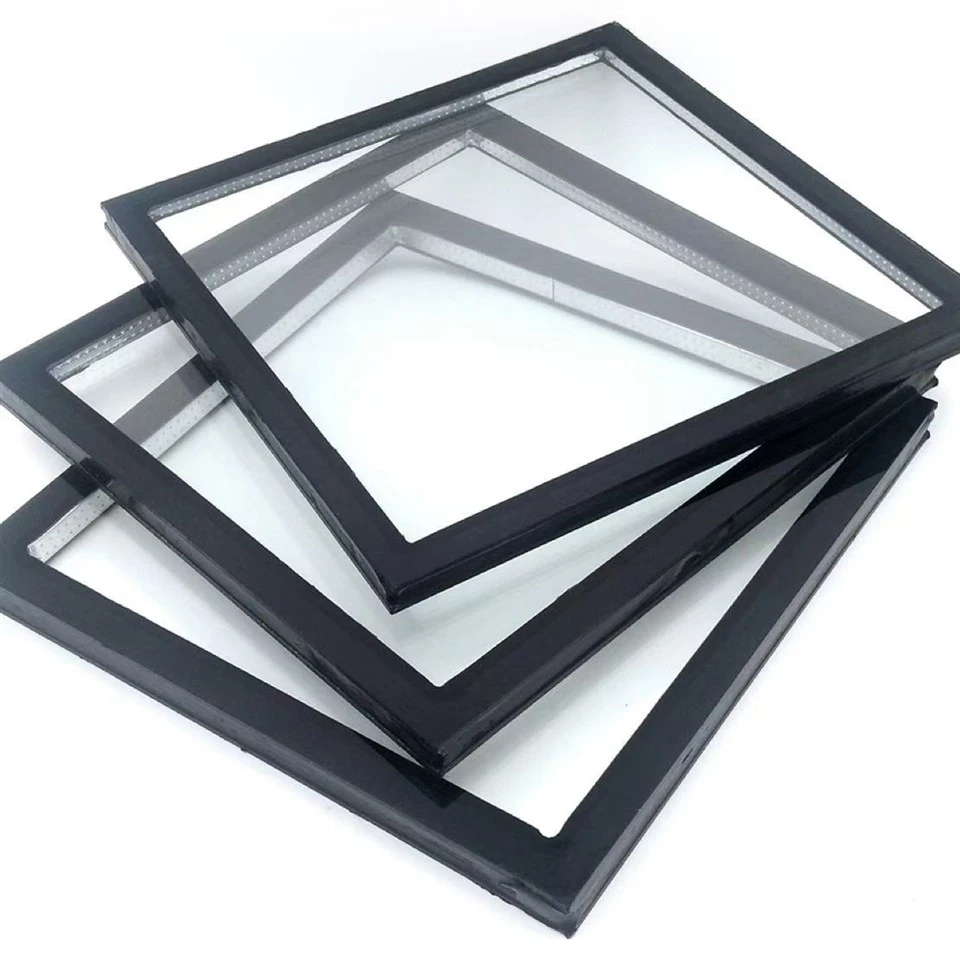

Double Pane Low-e Glass

In winter, the purpose of the coating is to reflect heat back into the building to prevent heat

Add to Inquiry

Why Choose Us

Advanced Production Equipment
We have complete and advanced glass deep processing production equipment, including 2 fully automatic glass cutting machines, 2 double-sided glass edge grinding machines, 1 laminated production line, 2 imported hollow production lines, straight edge machines, edge grinding machines, fully automatic cleaning machines and other supporting production equipment.

Production Capacity
The company has a large production base covering an area of about 8,000 square meters, The annual production and processing of glass products is about 1 million square meters.

Rich Experience
We have more than 10 years of experience in glass production, export and end applications. We have clients in more than 100 countries around the world to understand the needs of our customers and provide you with the perfect solution.

Customization
We provides tailored packaging solutions to meet customer requirements, including a range of packaging methods and materials. Their team of experienced packaging professionals offers expert guidance to ensure product safety during transportation and reduce product damage rates.

Types of Low-E Glass

Hard Coated Low-E Glass

Hard-coated Low-E glass, also known as in-line Low-E, is made using a pyrolysis process to produce a pyrolytic coating. This fusion creates a strong bond or "hard coat" that is extremely durable.

Low-e Glass Panels

Low-E glass panels is a coated glass that uses magnetron sputtering to coat one or more layers of metal or compound film on high-quality float glass.

Double Pane Low-e Glass

In winter, the purpose of the coating is to reflect heat back into the building to prevent heat loss and keep the indoor climate at a balanced temperature.

Specification

Thickness	3.2mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm
Size	1830x2440mm, 2134x3300mm, 2250x3300mm, 2440x3300mm, etc.
Glass Color	Transparent, blue, green, bronze and gray, etc.
Glass Type	Clear float, Super float, F-green
Coating Type	Online and Offline
Offline Low-E Glass Type	Single silver high transmittance, single silver high shading, double silver, etc.
Remarks	Coated glass can be customized according to the specifications and colors provided by the customer.

Advantages of Low-E Glass

Energy Efficiency

The primary advantage of Low-E glass is its ability to improve the energy efficiency of your home. By reflecting heat back to its source, it keeps your home warmer in the winter and cooler in the summer.

Environmental Benefits

By reducing the need for heating and air conditioning, Low-E glass also lowers greenhouse gas emissions and your home’s overall carbon footprint, making it an environmentally friendly choice.

Increased Comfort

Homes with Low-E glass experience fewer hot and cold spots, which creates a more comfortable indoor environment throughout the year.

Potential Increase in Home Value

Because of its energy efficiency and the benefits it provides, installing Low-E glass can also potentially increase the value of your home.

Reduced UV Exposure

Low-E glass reduces the amount of ultraviolet (UV) light that enters your home. This protection helps prevent furniture, carpets, and curtains from fading due to sun exposure, extending the life of your interior furnishings.

Better Sound Insulation

Low-E glass can provide better sound insulation than traditional windows. The special coating on the surface of the glass, along with the insulating gas between the panes, can help to reduce the transmission of sound through the window.

Application of Low-E Glass

Energy-Efficient Window

Low-E glass is widely used in energy-efficient windows to reduce heat loss during the winter and minimize heat gain during the summer.

Skylights and Roof Glazing

Low-E glass is used in skylights and roof glazing systems to maximize daylighting while minimizing heat transfer.

Curtain Walls and Facades

Low-E glass is employed in curtain walls and building facades to enhance thermal performance and energy efficiency.

Conservatories and Greenhouses

Low-E glass is utilized in conservatories and greenhouses to create optimal growing conditions for plants while minimizing heat loss.

Interior Partitions and Doors

Low-E glass is used in interior partitions and doors to enhance energy efficiency and create visual connectivity between different spaces.

How Low-E Glass Is Made

There are two main methods of manufacture for low-e glass:

Hard coat
Also known as pyrolytic coating, are most commonly used in commercial buildings.
The coating is applied directly to the surface of the glass ribbon while it is still in a molten state during the manufacturing process. The 'hard coating' is fused to the glass surface, which makes it more durable for glass processing and the sheets are cut into size after the coating has been applied. It's generally used where durability is needed in high levels of exposure to wind, rain, and other weather conditions.

Soft coat
Also known as magnetron sputtering vacuum deposition (MSVD), it is most commonly used for domestic windows. The soft coat is applied to pre-cut sheets of glass in a vacuum chamber at room temperature. Metal oxides are applied in a microscopically thin layer to standard glass via a magnetically enhanced cathodic sputtering process. Because the coating is not bonded to the glass it's applied to the internal panes of double-glazed and triple-glazed units to avoid damage.

Measuring Low-E Glass Performance

When determining the Low-E glass thermal performance, a couple of metrics are measured.

U-Value and R-Value: The U-Value measures the rate of heat transfer and indicates how well the window insulates. The numbers range from 0.25 – 1.25, and the lower the number, the better it performs at keeping heat inside. In relation to the U-value, the R-value is used to measure the product’s resistance to heat transfer. The R-value is calculated by finding the reciprocal of the U-value (R-value = 1/U). Lower U-Values will always correspond with higher R-Values and vice versa.

Solar Heat Gain Coefficient: The solar heat gain coefficient measures how well a product resists solar heat gain. This number ranges from a scale of 0-1 and the lower the number, the better a product is at resisting solar heat. Lower numbers also generally correlate with lower costs when cooling your home.

Visible Light Transmittance: Visible light transmittance measures how much visible light your product allows into the home. This number ranges from 0-1 and the higher the number, the more visible light is transmitted. High visible light transmittance can reduce the need for artificial lighting.

Customization Process

Consultation and Design Ideation	Our design team will work closely with you to understand your requirements and ensure the design aligns with your budget and manufacturing possibilities. Mob: +8615764184666, Email: Info@huanqiuglass.com.
Drawing and Specifications	When you send us an enquiry, please kindly make sure all the details such as size, logo requirements and order quantity. If you have the drawing, please feel free to send us.
Sample Production	We can provide samples for free.
Full Production	Once the samples are approved, mass production begins.
Surface Treatment	We have a range of specialized equipment and expertise for various treatments, including: Screen Printing/Decal Application/Digital Printing/Etching/Hand Painting/Spray Painting/Frosting.
Cutting	The glass is cut to the required dimensions using CNC or laser equipment.
Quality Control	During production, each item is inspected for defects such as cracks, bubbles, or inconsistent finishes.
Packaging	The finished glass products are carefully packed using foam, corner guards, and crates to prevent damage during transportation.

Packaging and Shipping

Packing	Safe Standard wooden box or plywood box, inner paper or powder.
Shipping	Suitable for sea and land transportation.
Delivery time	15-30 days according to different product sizes and production processes.
Payment	We accept T/T, Western Union, PayPal, Credit Card. Pay 50% deposit when signing the contract, and 50% balance before shipment.

productcate-1-1

Our Factory

Professional services in home decoration glass projects can ensure that all processes of architectural glass and interior decorative glass can be completed in this factory.

FAQ

Q: What is low-E glass?

A: The “E” in low-E glass stands for emissivity, or the amount of energy radiated from a surface. Emissivity is measured from 0 to 1, with 0 being a reflective mirror and 1 being a fully blacked-out surface.

Q: Is it worth getting low-E glass?

A: Yes, the cost of low-E glass is a few dollars more than standard glass. Nonetheless, the small extra fee will easily be offset by the benefits offered by it.

Q: How does a low-E glass work?

A: Low-E glass avoids heat loss during the winter months and maintains cooling during the summer months inside the house. Hence, it reduces greenhouse gas emissions of the house and makes a building environmentally friendly.

Q: How do i know if i already have low-E glass?

A: To see if a window has low-E glass, perform the following test:
Light a match or use a small flashlight and hold it close to the window. If you have a double-paned window, you'll see four reflections of light or flame because of the window's four glass surfaces (or two reflections for each pane of glass).
When low E glass is present, one of these reflections will show a different color compared to the others.
Without low E glass, all four reflected images will be the same color.

Q: Does it perform in different season/climate?

A: During the summer, this reflective coat sends heat back into the atmosphere instead of allowing it to enter into the home via the glass. During the winter, the reflective coat sends heat back into the home to keep the interior of the house comfortable. This innovative coating, along with the space between the panes of glass, serves as an excellent insulator for residential homes.

Q: How long do Low-E glass last?

A: Windows coated in Low-E glass can last anywhere from 10-15 years. Of course, proper maintenance can add years to the lifetime of your windows. We also find that the effectiveness of hard-coat Low-E glass lasts longer in most climates.

Q: Which is better, Low-E or double-pane glass?

A: Low-E glass is better than double-pane glass when it comes to energy efficiency. However, both types of glass have their merits depending on what you want in your home. Double-pane glass still provides more insulation and better energy efficiency than single pane glass without dipping into the higher pricing of Low-E. Do note that double- and triple-pane glass can also come with Low-E coating for even greater benefits.

Q: Is Low-E glass single- or double-pane?

A: Modern Low-E glass is almost exclusively double-pane, which helps increase the durability and lifespan of the soft-coat Low-E coatings. However single-pane options are available for anyone looking to make a historical home more energy efficient. If you want to apply Low-E to a single pane window, we highly advise consulting with an expert.

As one of the leading low-e glass manufacturers and suppliers in China, we warmly welcome you to buy high-grade low-e glass for sale here from our factory. All glass products are with high quality and competitive price.
